Vacua Storage

Vacua Storage#

What’s in this notebook? This notebook demonstrates how to generate, store, query, and curate flux vacuum solutions using the StringForge vacua storage and vault system. The worked examples use real SUSY vacua computed with JAXVacua solvers.

What you will learn:

Generate SUSY vacua with four ISD sampling modes, random sampling, and flux bounding
Store vacua with method labels, tags, and run IDs
Query and filter stored vacua by method, model, and custom criteria
Designate validated solutions as permanent records
Work with multiple models (local and from HuggingFace)

Prerequisites: Notebooks 2 (overview), 5 (finding flux vacua), 7 (ISD sampling).

1. Setup#

import warnings
import tempfile
import numpy as np

import jax
import jax.numpy as jnp
jax.config.update("jax_enable_x64", True)

from scipy.optimize import root
from tqdm.auto import tqdm

import matplotlib.pyplot as plt
import matplotlib as mpl
mpl.rcParams.update({
    "figure.dpi": 200, "font.size": 10, "axes.labelsize": 11,
    "figure.figsize": (7, 3), "legend.frameon": False,
    "font.family": "serif", "xtick.direction": "in", "ytick.direction": "in",
})

import jaxvacua as jvc
from stringforge import LCSDatabase as CYDatabase

warnings.filterwarnings('ignore')

# Create a temporary database for this demo (cleaned up at the end)
tmpdir = tempfile.mkdtemp(prefix="jaxvacua_demo_")

# Sandbox both the cache and the vault under tmpdir so the demo
# does not pollute the user's real vault.  STRINGFORGE_VAULT must
# be set BEFORE any `designate_vacua(...)` call — `_resolve_vault_dir()`
# raises `LookupError` if neither the env var nor a stringforge repo
# checkout is found (see §11 below for the three resolution stages).
import os, stringforge as sj
sj.set_vault_dir(os.path.join(tmpdir, "vault"))

db = CYDatabase.from_local(tmpdir)
print(f"Demo database: {db.cache_dir}")
print(f"Demo vault:    {os.environ['STRINGFORGE_VAULT']}")

Demo database: /var/folders/p7/f3t072gd3rbfgb00y3hj7dwc0000gn/T/jaxvacua_demo_ol_3rxw_/tdf
Demo vault:    /var/folders/p7/f3t072gd3rbfgb00y3hj7dwc0000gn/T/jaxvacua_demo_ol_3rxw_/vault

2. Model A: CP$[1,1,1,6,9]$ at $h^{2,1}=2$#

We use the degree-18 hypersurface in $\mathbb{CP}[1,1,1,6,9]$, loaded via the local model_ID=1 path.

model_A = jvc.FluxVacuaFinder(h12=2, model_ID=1, model_type="KS", maximum_degree=2)
model_A.lcs_tree.a_matrix = jnp.array([[4.5, 1.5], [1.5, 0.]])
sampler = jvc.data_sampler(model_A,flux_bounds=[-5,5])

print(f"h12 = {model_A.h12}, n_fluxes = {model_A.n_fluxes}")
print(f"D3 tadpole = {model_A.D3_tadpole}")

Restricted license - for non-production use only - expires 2026-11-23
h12 = 2, n_fluxes = 6
D3 tadpole = 276

Helper: solve and collect#

We define a small helper that takes ISD initial guesses, solves $D_i W = 0$ via scipy.optimize.root, and returns the converged solutions.

def solve_from_guesses(model, z0, tau0, fluxes0, tol=1e-10, residual_tol=1e-6):
    """Solve DW=0 for each (z, tau, flux) triple. Return converged solutions."""
    moduli_out, tau_out, flux_out = [], [], []
    for i in range(len(z0)):
        x0 = model._convert_complex_to_real(
            z0[i], jnp.conj(z0[i]), tau0[i], jnp.conj(tau0[i])
        )
        r = root(model.DW_x, x0, args=(fluxes0[i],),
                 jac=model.dDW_x, method="hybr", tol=tol)
        residual = float(np.max(np.abs(r.fun)))
        if residual < residual_tol:
            m, _, t, _ = model._convert_real_to_complex(r.x)
            if not np.any(np.isnan(np.append(m, t))):
                moduli_out.append(m)
                tau_out.append(t)
                flux_out.append(fluxes0[i])
    if len(moduli_out) == 0:
        return jnp.zeros((0, model.h12)), jnp.zeros(0), jnp.zeros((0, 2*model.n_fluxes))
    return jnp.array(moduli_out), jnp.array(tau_out), jnp.array(flux_out)

3. Generating vacua with different sampling methods#

We generate SUSY vacua using four ISD modes and store each batch separately, labeled by method.

ISD sampling (4 modes)#

ISD (Imaginary Self-Dual) sampling exploits the ISD condition $\star G_3 = \mathrm{i} G_3$ to construct flux vectors that approximately satisfy the F-term equations. Given a random moduli point $(z^a, \tau)$ and half of the flux quanta, the ISD condition fixes the remaining fluxes analytically. After rounding to integers, a short Newton solve finds the nearby exact SUSY vacuum.

Four modes are available:

ISD+ / ISD-: solve the ISD condition for the upper/lower flux components
F: fix the NSNS-flux $h$ and derive the RR-flux $f$
H: fix the RR-flux $f$ and derive the NSNS-flux $h$

Each mode explores a different region of the flux landscape and yields a different set of vacua.

Nmax = 276
N_candidates = 50

for isd_mode in ["ISD+", "ISD-", "F", "H"]:
    # Generate ISD initial guesses
    z0, tau0, fluxes0 = sampler.initial_guesses_ISD(
        N=N_candidates, Nmax=Nmax, mode=isd_mode,
        moduli_sampling_mode="cone", ISD_oversample_factor=2,
        print_progress=True, filter_moduli=True
    )

    # Solve for SUSY vacua
    moduli, tau, fluxes = solve_from_guesses(model_A, z0, tau0, fluxes0)

    print(f"{isd_mode:5s}: {len(moduli)}/{N_candidates} converged")

    # Store in database
    if len(moduli) > 0:
        with db.vacua_writer(model=model_A, method=isd_mode) as w:
            w.append_batch(moduli, tau, fluxes, is_susy=np.ones(len(moduli), dtype=bool))
        print(f"       Stored {w.count} vacua (run_id: {w._run_id[:8]}...)")

ISD+ : 41/50 converged
       Stored 41 vacua (run_id: 369c393a...)
ISD- : 22/50 converged
       Stored 22 vacua (run_id: 9b464300...)
F    : 29/50 converged
       Stored 29 vacua (run_id: d1e5e8bd...)
H    : 39/50 converged
       Stored 39 vacua (run_id: 805a9e7e...)

Random uniform sampling#

Sample moduli and fluxes uniformly at random, then solve.

rng = np.random.default_rng(42)
N_random = 100

# Random moduli in the Kahler cone
z_rand = jnp.array(rng.uniform(-0.5, 0.5, (N_random, 2)) + 1j * rng.uniform(2, 5, (N_random, 2)))
tau_rand = jnp.array(rng.uniform(-0.5, 0.5, N_random) + 1j * rng.uniform(1, 10, N_random))
flux_rand = jnp.array(rng.integers(-5, 6, (N_random, 2 * model_A.n_fluxes)), dtype=float)

# Filter by tadpole
sigma = np.array(model_A.periods.sigma)
nf = model_A.n_fluxes
tad = np.array([abs(flux_rand[i, :nf] @ sigma @ flux_rand[i, nf:]) for i in range(N_random)])
mask = (tad > 0) & (tad <= Nmax)
z_rand, tau_rand, flux_rand = z_rand[mask], tau_rand[mask], flux_rand[mask]

moduli_r, tau_r, flux_r = solve_from_guesses(model_A, z_rand, tau_rand, flux_rand)
print(f"random: {len(moduli_r)}/{len(z_rand)} converged (from {N_random} initial)")

if len(moduli_r) > 0:
    with db.vacua_writer(model=model_A, method="random") as w:
        w.append_batch(moduli_r, tau_r, flux_r, is_susy=np.ones(len(moduli_r), dtype=bool))
    print(f"       Stored {w.count} vacua")

random: 42/100 converged (from 100 initial)
       Stored 42 vacua

Flux bounding (systematic enumeration)#

Use bounded_fluxes.enumerate_fluxes with a small $N_\text{max}$ for a quick systematic scan.

from jaxvacua.flux_bounding import bounded_fluxes

bf = bounded_fluxes(model_A, sampler, Nmax=Nmax)
enum_results = bf.sample_bounded_fluxes(n_sample=50, n_batch=50, n_target=50, n_mod=5, refine=True, verbose=True)

if len(enum_results) > 0:
    # Extract arrays
    m_enum = jnp.array([r["moduli"] for r in enum_results])
    t_enum = jnp.array([r["tau"] for r in enum_results])
    f_enum = jnp.array([r["flux"] for r in enum_results])

    with db.vacua_writer(model=model_A, method="flux_bounding") as w:
        w.append_batch(m_enum, t_enum, f_enum, is_susy=np.ones(len(m_enum), dtype=bool))
    print(f"flux_bounding: Stored {w.count} vacua from {len(enum_results)} results")
else:
    print("flux_bounding: No results (try increasing Nmax or n_sample)")

[sample_bounded] Moduli region: sampler-defined
[sample_bounded] Step 1 — Sampling 50 moduli points and computing eigenvalue bounds ...
[sample_bounded]   λ_max=214.6011, μ_min=0.0468, μ̃_min=0.0047  [0.9s]
[sample_bounded]   Bounding box: h1_box=211.15, h2_box=66.65, h_box=267.54
[sample_bounded] Step 2 — Preparing ISD kernels (5 moduli points) ...
[sample_bounded]   5 ISD moduli points.  [1.0s]
[sample_bounded] Stochastic search: target=50, batch_size=10, n_mod=5, max_batches=100  [1.0s]
[sample_bounded]   Batch 1/100 | found 0/50 | candidates: 1, converged: 1/1, in-patch: 0/1  [4.3s]
[sample_bounded]   Batch 2/100 | found 0/50 | candidates: 1, converged: 1/1, in-patch: 0/1  [4.3s]
[sample_bounded]   Batch 3/100 | found 0/50 | 30 tried, yield 0.00%  [4.4s]
[sample_bounded]   Batch 4/100 | found 0/50 | candidates: 3, converged: 2/3, in-patch: 0/2  [7.1s]
[sample_bounded]   Batch 5/100 | found 0/50 | 50 tried, yield 0.00%  [7.2s]
[sample_bounded]   Batch 6/100 | found 0/50 | 60 tried, yield 0.00%  [7.2s]
[sample_bounded]   Batch 7/100 | found 0/50 | 70 tried, yield 0.00%  [7.3s]
[sample_bounded]   Batch 8/100 | found 0/50 | 80 tried, yield 0.00%  [7.5s]
[sample_bounded]   Batch 9/100 | found 0/50 | 90 tried, yield 0.00%  [7.6s]
[sample_bounded]   Batch 10/100 | found 0/50 | candidates: 2, converged: 0/2, in-patch: 0/1  [10.3s]
[sample_bounded]   Batch 11/100 | found 0/50 | candidates: 1, converged: 1/1, in-patch: 0/1  [10.3s]
[sample_bounded]   Batch 12/100 | found 0/50 | candidates: 1, converged: 1/1, in-patch: 0/1  [10.3s]
[sample_bounded]   Batch 13/100 | found 0/50 | candidates: 2, converged: 1/2, in-patch: 0/1  [10.3s]
[sample_bounded]   Batch 14/100 | found 0/50 | 140 tried, yield 0.00%  [10.3s]
[sample_bounded]   Batch 15/100 | found 0/50 | 150 tried, yield 0.00%  [10.6s]
[sample_bounded]   Batch 16/100 | found 0/50 | 160 tried, yield 0.00%  [10.6s]
[sample_bounded]   Batch 17/100 | found 0/50 | candidates: 1, converged: 0/1, in-patch: 0/1  [10.6s]
[sample_bounded]   Batch 18/100 | found 0/50 | 180 tried, yield 0.00%  [10.6s]
[sample_bounded]   Batch 19/100 | found 0/50 | candidates: 1, converged: 0/1, in-patch: 0/1  [10.6s]
[sample_bounded]   Batch 20/100 | found 1/50 | candidates: 1, converged: 1/1, in-patch: 1/1  [10.7s]
[sample_bounded]   Batch 21/100 | found 1/50 | 210 tried, yield 0.48%  [10.7s]
[sample_bounded]   Batch 22/100 | found 1/50 | 220 tried, yield 0.45%  [10.7s]
[sample_bounded]   Batch 23/100 | found 1/50 | 230 tried, yield 0.43%  [10.7s]
[sample_bounded]   Batch 24/100 | found 1/50 | candidates: 2, converged: 2/2, in-patch: 0/2  [10.7s]
[sample_bounded]   Batch 25/100 | found 1/50 | candidates: 2, converged: 1/2, in-patch: 0/1  [10.7s]
[sample_bounded]   Batch 26/100 | found 1/50 | 260 tried, yield 0.38%  [10.7s]
[sample_bounded]   Batch 27/100 | found 1/50 | candidates: 1, converged: 0/1, in-patch: 0/1  [10.7s]
[sample_bounded]   Batch 28/100 | found 1/50 | candidates: 2, converged: 1/2, in-patch: 0/1  [10.7s]
[sample_bounded]   Batch 29/100 | found 1/50 | candidates: 1, converged: 1/1, in-patch: 0/1  [10.7s]
[sample_bounded]   Batch 30/100 | found 1/50 | candidates: 1, converged: 0/1, in-patch: 0/1  [10.7s]
[sample_bounded]   Batch 31/100 | found 1/50 | candidates: 1, converged: 1/1, in-patch: 0/1  [10.7s]
[sample_bounded]   Batch 32/100 | found 1/50 | 320 tried, yield 0.31%  [10.7s]
[sample_bounded]   Batch 33/100 | found 1/50 | 330 tried, yield 0.30%  [10.7s]
[sample_bounded]   Batch 34/100 | found 1/50 | candidates: 1, converged: 0/1, in-patch: 0/1  [10.7s]
[sample_bounded]   Batch 35/100 | found 1/50 | candidates: 1, converged: 1/1, in-patch: 0/1  [10.7s]
[sample_bounded]   Batch 36/100 | found 1/50 | candidates: 2, converged: 1/2, in-patch: 0/1  [10.7s]
[sample_bounded]   Batch 37/100 | found 1/50 | 370 tried, yield 0.27%  [10.8s]
[sample_bounded]   Batch 38/100 | found 1/50 | 380 tried, yield 0.26%  [10.8s]
[sample_bounded]   Batch 39/100 | found 1/50 | 390 tried, yield 0.26%  [10.8s]
[sample_bounded]   Batch 40/100 | found 1/50 | candidates: 2, converged: 1/2, in-patch: 0/1  [10.8s]
[sample_bounded]   Batch 41/100 | found 1/50 | candidates: 3, converged: 3/3, in-patch: 0/3  [10.8s]
[sample_bounded]   Batch 42/100 | found 1/50 | 420 tried, yield 0.24%  [10.8s]
[sample_bounded]   Batch 43/100 | found 1/50 | candidates: 1, converged: 0/1, in-patch: 0/1  [10.8s]
[sample_bounded]   Batch 44/100 | found 1/50 | candidates: 1, converged: 0/1, in-patch: 0/1  [10.8s]
[sample_bounded]   Batch 45/100 | found 1/50 | candidates: 1, converged: 1/1, in-patch: 0/1  [10.8s]
[sample_bounded]   Batch 46/100 | found 1/50 | 460 tried, yield 0.22%  [10.8s]
[sample_bounded]   Batch 47/100 | found 1/50 | 470 tried, yield 0.21%  [10.8s]
[sample_bounded]   Batch 48/100 | found 1/50 | candidates: 1, converged: 1/1, in-patch: 0/1  [10.8s]
[sample_bounded]   Batch 49/100 | found 1/50 | candidates: 2, converged: 2/2, in-patch: 0/2  [10.8s]
[sample_bounded]   Batch 50/100 | found 1/50 | candidates: 1, converged: 1/1, in-patch: 0/1  [10.8s]
[sample_bounded]   Batch 51/100 | found 1/50 | candidates: 1, converged: 1/1, in-patch: 0/1  [10.8s]
[sample_bounded]   Batch 52/100 | found 1/50 | candidates: 2, converged: 1/2, in-patch: 0/1  [10.8s]
[sample_bounded]   Batch 53/100 | found 1/50 | candidates: 2, converged: 2/2, in-patch: 0/2  [10.8s]
[sample_bounded]   Batch 54/100 | found 1/50 | 540 tried, yield 0.19%  [10.8s]
[sample_bounded]   Batch 55/100 | found 1/50 | candidates: 1, converged: 1/1, in-patch: 0/1  [10.8s]
[sample_bounded]   Batch 56/100 | found 1/50 | candidates: 1, converged: 0/1, in-patch: 0/1  [10.8s]
[sample_bounded]   Batch 57/100 | found 1/50 | 570 tried, yield 0.18%  [10.8s]
[sample_bounded]   Batch 58/100 | found 1/50 | candidates: 1, converged: 1/1, in-patch: 0/1  [10.8s]
[sample_bounded]   Batch 59/100 | found 1/50 | 590 tried, yield 0.17%  [10.8s]
[sample_bounded]   Batch 60/100 | found 1/50 | 600 tried, yield 0.17%  [10.8s]
[sample_bounded]   Batch 61/100 | found 1/50 | 610 tried, yield 0.16%  [10.8s]
[sample_bounded]   Batch 62/100 | found 1/50 | candidates: 1, converged: 0/1, in-patch: 0/1  [10.8s]
[sample_bounded]   Batch 63/100 | found 1/50 | candidates: 2, converged: 0/2, in-patch: 0/1  [10.8s]
[sample_bounded]   Batch 64/100 | found 1/50 | 640 tried, yield 0.16%  [10.8s]
[sample_bounded]   Batch 65/100 | found 1/50 | candidates: 2, converged: 2/2, in-patch: 0/2  [10.8s]
[sample_bounded]   Batch 66/100 | found 1/50 | 660 tried, yield 0.15%  [10.8s]
[sample_bounded]   Batch 67/100 | found 1/50 | candidates: 1, converged: 1/1, in-patch: 0/1  [10.8s]
[sample_bounded]   Batch 68/100 | found 1/50 | 680 tried, yield 0.15%  [10.8s]
[sample_bounded]   Batch 69/100 | found 1/50 | candidates: 2, converged: 2/2, in-patch: 0/2  [10.8s]
[sample_bounded]   Batch 70/100 | found 1/50 | candidates: 1, converged: 0/1, in-patch: 0/1  [10.8s]
[sample_bounded]   Batch 71/100 | found 1/50 | candidates: 1, converged: 1/1, in-patch: 0/1  [10.8s]
[sample_bounded]   Batch 72/100 | found 1/50 | 720 tried, yield 0.14%  [10.8s]
[sample_bounded]   Batch 73/100 | found 1/50 | candidates: 1, converged: 0/1, in-patch: 0/1  [10.8s]
[sample_bounded]   Batch 74/100 | found 1/50 | 740 tried, yield 0.14%  [10.8s]
[sample_bounded]   Batch 75/100 | found 1/50 | candidates: 1, converged: 1/1, in-patch: 0/1  [10.8s]
[sample_bounded]   Batch 76/100 | found 2/50 | candidates: 1, converged: 1/1, in-patch: 1/1  [10.8s]
[sample_bounded]   Batch 77/100 | found 2/50 | 770 tried, yield 0.26%  [10.8s]
[sample_bounded]   Batch 78/100 | found 2/50 | 780 tried, yield 0.26%  [10.8s]
[sample_bounded]   Batch 79/100 | found 3/50 | candidates: 2, converged: 1/2, in-patch: 1/1  [10.9s]
[sample_bounded]   Batch 80/100 | found 3/50 | candidates: 1, converged: 1/1, in-patch: 0/1  [10.9s]
[sample_bounded]   Batch 81/100 | found 3/50 | 810 tried, yield 0.37%  [10.9s]
[sample_bounded]   Batch 82/100 | found 3/50 | 820 tried, yield 0.37%  [10.9s]
[sample_bounded]   Batch 83/100 | found 4/50 | candidates: 1, converged: 1/1, in-patch: 1/1  [10.9s]
[sample_bounded]   Batch 84/100 | found 5/50 | candidates: 1, converged: 1/1, in-patch: 1/1  [10.9s]
[sample_bounded]   Batch 85/100 | found 5/50 | 850 tried, yield 0.59%  [10.9s]
[sample_bounded]   Batch 86/100 | found 5/50 | candidates: 1, converged: 0/1, in-patch: 0/1  [10.9s]
[sample_bounded]   Batch 87/100 | found 5/50 | 870 tried, yield 0.57%  [10.9s]
[sample_bounded]   Batch 88/100 | found 5/50 | candidates: 1, converged: 0/1, in-patch: 0/1  [10.9s]
[sample_bounded]   Batch 89/100 | found 5/50 | 890 tried, yield 0.56%  [10.9s]
[sample_bounded]   Batch 90/100 | found 5/50 | 900 tried, yield 0.56%  [10.9s]
[sample_bounded]   Batch 91/100 | found 5/50 | candidates: 2, converged: 1/2, in-patch: 0/1  [10.9s]
[sample_bounded]   Batch 92/100 | found 5/50 | candidates: 1, converged: 1/1, in-patch: 0/1  [10.9s]
[sample_bounded]   Batch 93/100 | found 5/50 | candidates: 1, converged: 1/1, in-patch: 0/1  [10.9s]
[sample_bounded]   Batch 94/100 | found 5/50 | candidates: 1, converged: 1/1, in-patch: 0/1  [10.9s]
[sample_bounded]   Batch 95/100 | found 5/50 | candidates: 1, converged: 1/1, in-patch: 0/1  [10.9s]
[sample_bounded]   Batch 96/100 | found 5/50 | 960 tried, yield 0.52%  [10.9s]
[sample_bounded]   Batch 97/100 | found 5/50 | candidates: 1, converged: 1/1, in-patch: 0/1  [10.9s]
[sample_bounded]   Batch 98/100 | found 5/50 | candidates: 1, converged: 1/1, in-patch: 0/1  [10.9s]
[sample_bounded]   Batch 99/100 | found 5/50 | candidates: 1, converged: 1/1, in-patch: 0/1  [10.9s]
[sample_bounded]   Batch 100/100 | found 5/50 | candidates: 1, converged: 1/1, in-patch: 0/1  [10.9s]
[sample_bounded] Done: 5 refined vacua from 78 candidates (1000 samples, yield 0.50%)  [10.9s]
flux_bounding: Stored 5 vacua from 5 results

Perturbatively flat vacua (PFVs)#

PFVs are a special class of flux vacua where the polynomial superpotential vanishes exactly along a flat direction $z^a = p^a \tau$. The vacuum is lifted only by exponentially suppressed instanton corrections, leading to very small $|W_0|$.

The PFV is specified by integer vectors $(M^a, K_a)$ satisfying (see arXiv:2512.17095, Section 6.2):

$\det(N) \neq 0$ where $N_{ab} = \kappa_{abc} M^c$
$p^a = (N^{-1} K)^a \in \mathcal{K}_{\widetilde{X}}$ (Kahler cone)
$K_a p^a = 0$ (orthogonality)

pfv_to_flux(M, K) constructs the full flux vector, and pfv_to_moduli(M, K, tau) gives the flat-direction starting point.

# PFV example from arXiv:2501.03984 (Table 1)
M_pfv = jnp.array([-16, 50])
K_pfv = jnp.array([3, -4])
gs = 0.2  # string coupling

flux_pfv = model_A.pfv_to_flux(M_pfv, K_pfv)
tau0_pfv = 1j / gs
z0_pfv = model_A.pfv_to_moduli(M_pfv, K_pfv, tau0_pfv)

print(f"PFV flux: {np.array(flux_pfv, dtype=int)}")
print(f"Starting moduli: z = {z0_pfv}")
print(f"Starting tau:    {tau0_pfv}")

# Newton warm-start (PFV starting point is close but not exact)
z_n, tau_n, _ = model_A.newton_method_flux_vacua(
    z0_pfv, tau0_pfv, flux_pfv,
    step_size_Newton=0.5, tol=1e-12, max_iters=100,
    mode="SUSY", solver_mode="real",
)

# scipy polish
x_n = np.array(model_A._convert_complex_to_real(z_n, jnp.conj(z_n), tau_n, jnp.conj(tau_n)))
r_pfv = root(model_A.DW_x, x_n, args=(flux_pfv,), jac=model_A.dDW_x, method="hybr", tol=1e-12)
residual = float(np.max(np.abs(r_pfv.fun)))

if residual < 1e-6:
    z_pfv, _, tau_pfv, _ = model_A._convert_real_to_complex(jnp.array(r_pfv.x))
    W0 = model_A.superpotential_gauge_invariant(z_pfv, tau_pfv, flux_pfv)
    print(f"\nConverged! |W0_gi| = {abs(complex(W0)):.6e}  (|DW| = {residual:.2e})")
    print(f"z  = {z_pfv}")
    print(f"tau = {tau_pfv}")

    # Store as PFV with tags
    with db.vacua_writer(model=model_A, method="PFV",
                         metadata={"M": M_pfv.tolist(), "K": K_pfv.tolist(), "gs": gs}) as w:
        w.append({"moduli": np.array(z_pfv), "tau": complex(tau_pfv),
                  "flux": np.array(flux_pfv)},
                 tags=["racetrack", "small_W0"])
    print(f"Stored PFV vacuum (run_id: {w._run_id[:8]}...)")
else:
    print(f"PFV did not converge (|DW| = {residual:.2e})")

PFV flux: [  7   3 -24   0 -16  50   0   3  -4   0   0   0]
Starting moduli: z = [0.+2.j  0.+1.5j]
Starting tau:    5j

Converged! |W0_gi| = 2.037112e-08  (|DW| = 1.29e-14)
z  = [-2.82421661e-10+2.74217626j -2.11815726e-10+2.05663223j]
tau = (-7.060311838346165e-10+6.855455455317841j)
Stored PFV vacuum (run_id: fb9bd3f3...)

# Scan over several PFV (M, K) pairs
pfv_pairs = [
    ([-16, 50], [3, -4], 0.2),
    ([-8, 25],  [3, -4], 0.3),
    ([4, -8],   [8, -3], 0.15),
    ([-10, 30], [3, -4], 0.12),
]

pfv_moduli, pfv_tau, pfv_flux = [], [], []
for M_list, K_list, gs_val in pfv_pairs:
    M_i = jnp.array(M_list)
    K_i = jnp.array(K_list)
    fl_i = model_A.pfv_to_flux(M_i, K_i)
    tau_i = 1j / gs_val
    z_i = model_A.pfv_to_moduli(M_i, K_i, tau_i)

    try:
        # Newton warm-start + scipy polish
        z_n, tau_n, _ = model_A.newton_method_flux_vacua(
            z_i, tau_i, fl_i, step_size_Newton=0.5, tol=1e-12,
            max_iters=100, mode="SUSY", solver_mode="real",
        )
        x_n = np.array(model_A._convert_complex_to_real(z_n, jnp.conj(z_n), tau_n, jnp.conj(tau_n)))
        r_i = root(model_A.DW_x, x_n, args=(fl_i,), jac=model_A.dDW_x, method="hybr", tol=1e-12)
        residual = float(np.max(np.abs(r_i.fun)))

        if residual < 1e-6:
            m_i, _, t_i, _ = model_A._convert_real_to_complex(jnp.array(r_i.x))
            W_i = abs(complex(model_A.superpotential_gauge_invariant(m_i, t_i, fl_i)))
            pfv_moduli.append(m_i)
            pfv_tau.append(t_i)
            pfv_flux.append(fl_i)
            print(f"M={M_list}, K={K_list}, gs={gs_val}: |W0_gi|={W_i:.4e}")
        else:
            print(f"M={M_list}, K={K_list}, gs={gs_val}: did not converge (|DW|={residual:.2e})")
    except Exception as e:
        print(f"M={M_list}, K={K_list}, gs={gs_val}: error — {e}")

if len(pfv_moduli) > 0:
    with db.vacua_writer(model=model_A, method="PFV_scan") as w:
        w.append_batch(jnp.array(pfv_moduli), jnp.array(pfv_tau), jnp.array(pfv_flux),
                       is_susy=np.ones(len(pfv_moduli), dtype=bool),
                       tags=["racetrack"])
    print(f"\nStored {w.count} PFV vacua")

M=[-16, 50], K=[3, -4], gs=0.2: |W0_gi|=2.0371e-08
M=[-8, 25], K=[3, -4], gs=0.3: |W0_gi|=1.4405e-08
M=[4, -8], K=[8, -3], gs=0.15: did not converge (|DW|=nan)
M=[-10, 30], K=[3, -4], gs=0.12: did not converge (|DW|=nan)

Stored 1 PFV vacua

Summary of SUSY vacua#

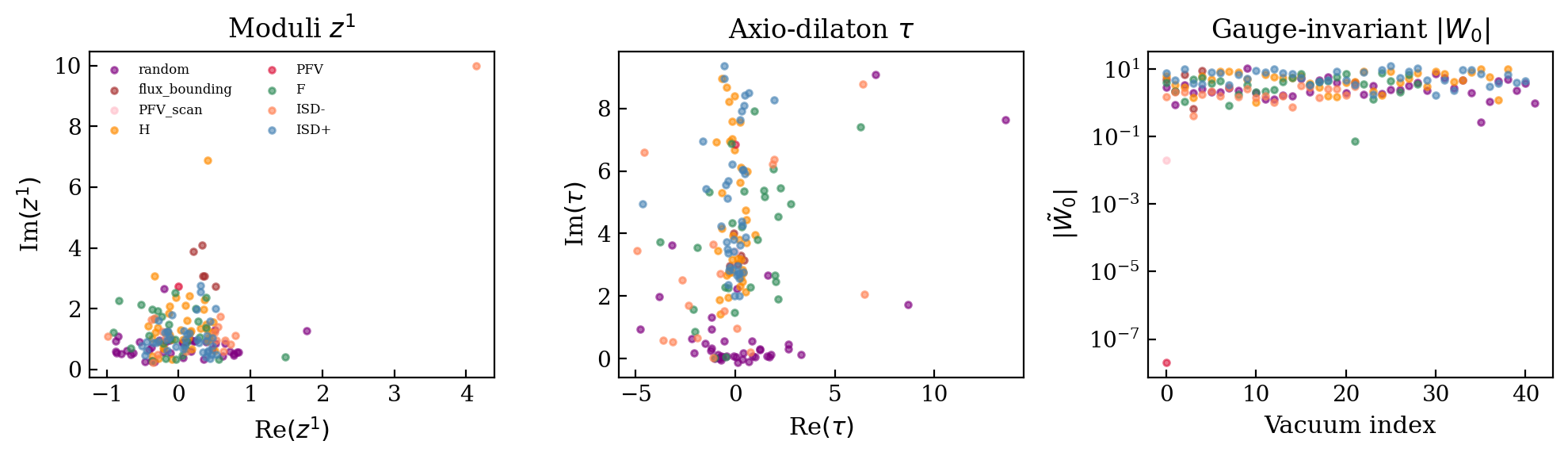

Let us visualise the vacua collected so far across all sampling methods.

all_runs = db.query_vacua(h12=2)
all_runs.head(5)

	vacuum_id	flux	moduli_re	moduli_im	tau_re	tau_im	W_re	W_im	F_terms_re	F_terms_im	...	triang_id	conifold_id	cicy_id	model_hash	model_name	method	created	metadata	moduli	tau
0	0	[21, 19, 0, -1, -2, -2, 4, 21, 7, 0, 2, -2]	[-0.46836663972052406, -0.06922841920969769]	[0.46448869675076043, 0.9297221483816526]	-0.134633	2.837700	None	None	None	None	...	-1	-1	-1	8eebda74984ae6d0ec34af36d8d93ef326c211cd1edbf7...	local_h12_2_ID_1	ISD+	2026-06-10 22:48:40.505942+00:00	None	[(-0.46836663972052406+0.46448869675076043j), ...	-0.134633+2.837700j
1	1	[40, -19, 3, 4, 5, 3, 4, -10, -3, 0, -1, 2]	[0.5296880796408124, -0.32023796208904753]	[0.4911621870478364, 1.8494163401942396]	-0.067452	3.810561	None	None	None	None	...	-1	-1	-1	8eebda74984ae6d0ec34af36d8d93ef326c211cd1edbf7...	local_h12_2_ID_1	ISD+	2026-06-10 22:48:40.505942+00:00	None	[(0.5296880796408124+0.4911621870478364j), (-0...	-0.067452+3.810561j
2	2	[0, 20, 7, 5, -5, 0, -1, 26, 6, 1, 1, 2]	[0.09064033216355658, -0.7494641273900575]	[0.9757830327951234, 1.0270404583300263]	0.206257	2.737421	None	None	None	None	...	-1	-1	-1	8eebda74984ae6d0ec34af36d8d93ef326c211cd1edbf7...	local_h12_2_ID_1	ISD+	2026-06-10 22:48:40.505942+00:00	None	[(0.09064033216355658+0.9757830327951234j), (-...	0.206257+2.737421j
3	3	[-18, 34, 6, -4, 0, 4, 9, -2, -2, 0, 0, 4]	[0.38429692383686975, -0.2862658984674867]	[0.4155502073436528, 3.61461514143811]	0.311495	7.921757	None	None	None	None	...	-1	-1	-1	8eebda74984ae6d0ec34af36d8d93ef326c211cd1edbf7...	local_h12_2_ID_1	ISD+	2026-06-10 22:48:40.505942+00:00	None	[(0.38429692383686975+0.4155502073436528j), (-...	0.311495+7.921757j
4	4	[34, -54, 22, 3, 5, -5, 0, -12, -2, 0, -1, 5]	[0.3809191630812639, 0.611255378328325]	[0.9389060403121477, 4.419512636629724]	-0.487857	5.568850	None	None	None	None	...	-1	-1	-1	8eebda74984ae6d0ec34af36d8d93ef326c211cd1edbf7...	local_h12_2_ID_1	ISD+	2026-06-10 22:48:40.505942+00:00	None	[(0.3809191630812639+0.9389060403121477j), (0....	-0.487857+5.568850j

5 rows × 30 columns

# Collect all SUSY vacua and plot
if len(all_runs) > 0:
    fig, axes = plt.subplots(1, 3, figsize=(10, 3))
    colors = {"ISD+": "steelblue", "ISD-": "coral", "F": "seagreen", "H": "darkorange",
              "random": "purple", "flux_bounding": "brown", "PFV": "crimson", "PFV_scan": "pink"}

    run_ids = list({x for x in all_runs['run_id'].to_list()})

    for run_id in run_ids:
        run_row = all_runs[all_runs['run_id'] == run_id].iloc[0]
        method = run_row["method"]
        try:
            df = db.load_vacua(run_id=run_id)
        except Exception:
            continue
        if len(df) == 0:
            continue

        z_arr = np.array(df["moduli"].tolist())
        tau_arr = np.array(df["tau"].tolist())
        c = colors.get(method, "gray")

        flag = (np.all(np.abs(z_arr.imag) < 10, axis=1)) & (np.abs(tau_arr.imag) < 10)
        z_arr = z_arr[flag]
        tau_arr = tau_arr[flag]

        axes[0].scatter(z_arr[:, 0].real, z_arr[:, 0].imag, s=8, c=c, alpha=0.6, label=method)
        axes[1].scatter(tau_arr.real, tau_arr.imag, s=8, c=c, alpha=0.6)

        # Compute |W0| for each vacuum
        for j in range(len(df)):
            row = df.iloc[j]
            try:
                W0 = abs(complex(model_A.superpotential_gauge_invariant(
                    jnp.array(row["moduli"]), complex(row["tau"]), jnp.array(row["flux"]))))
                axes[2].scatter(j, W0, s=8, c=c, alpha=0.6)
            except Exception:
                pass

    axes[0].set_xlabel(r"Re$(z^1)$")
    axes[0].set_ylabel(r"Im$(z^1)$")
    axes[0].set_title("Moduli $z^1$")
    # Remove duplicate labels
    handles, labels = axes[0].get_legend_handles_labels()
    by_label = dict(zip(labels, handles))
    axes[0].legend(by_label.values(), by_label.keys(), fontsize=6, ncol=2)

    axes[1].set_xlabel(r"Re$(\tau)$")
    axes[1].set_ylabel(r"Im$(\tau)$")
    axes[1].set_title(r"Axio-dilaton $\tau$")

    axes[2].set_xlabel("Vacuum index")
    axes[2].set_ylabel(r"$|\tilde{W}_0|$")
    axes[2].set_yscale("log")
    axes[2].set_title(r"Gauge-invariant $|W_0|$")

    fig.tight_layout()
    plt.show()
else:
    print("No vacua stored yet")

../../_images/a138b6fdb214e177f5a29a3962aafd588d650f37dfdf735cf56973b053021a7b.png

4. Non-SUSY critical points#

The earlier sections solved the SUSY conditions $D_I W = 0$. A generic critical point of the scalar potential satisfies only $\partial_\phi V = 0$ and need not be supersymmetric. Note that perturbing a SUSY solution at fixed flux cannot reach a new one — at a fixed SUSY flux the only critical point of $V$ is that SUSY point itself. We therefore use the finder’s built-in critical-point sampler sample_critical_points, which draws fresh Gaussian-prior fluxes, ISD-completes them, and refines $\partial_\phi V = 0$ with a hybrid optax→Newton solver, classifying each solution (SUSY vs non-SUSY, minimum vs saddle) from the Hessian of $V$.

# Sample genuine critical points of V (dV/dphi = 0) — NOT perturbations of SUSY
# vacua at fixed flux (which can only ever recover the SUSY point itself).
# `sample_critical_points` draws fresh Gaussian-prior fluxes, ISD-completes them,
# refines dV=0 with a hybrid solver (vectorised optax warm-start + Newton polish),
# filters by physicality, classifies each point (is_susy / is_minimum via the
# Hessian) and deduplicates.
cp_results = model_A.sample_critical_points(
    n_target=20,
    isd_mode="ISD-",      # non-SUSY ISD completion
    solver="hybrid",      # recommended for non-SUSY scans at scale
    n_batch=1000,
    max_batches=10,
    classify=True,
    deduplicate=True,
    verbose=True,
)

n_nonsusy = sum(not r["is_susy"] for r in cp_results)
n_saddle  = sum(not r["is_minimum"] for r in cp_results)
print(f"\nFound {len(cp_results)} critical points "
      f"({n_nonsusy} non-SUSY, {n_saddle} saddles).")

[sample_critical_points] Searching for critical points of V (no-scale)
  Nmax=276, mode=ISD-, solver=hybrid
  Batch 1: 932 candidates → 248 critical pts (35 SUSY, 213 non-SUSY, 57 minima) | total: 248  [77.0s]

[sample_critical_points] Done: 248 critical points (35 SUSY, 213 non-SUSY, 57 minima, 191 saddle) from 932 valid candidates (1000 tried)  [77.0s]

Found 248 critical points (213 non-SUSY, 191 saddles).

Non-SUSY and critical-point results#

The vault schema is solver-agnostic. Once a solver has produced critical-point data with fluxes, moduli, axio-dilaton values, and classification metadata, the results can be written through the same db.vacua_writer(...) interface used above.

# `cp_results` was produced above by sample_critical_points(); store it through
# the same solver-agnostic vacua_writer interface used for the SUSY runs.
if len(cp_results) > 0:
    cp_moduli = jnp.array([r["moduli"] for r in cp_results])
    cp_tau = jnp.array([complex(r["tau"]) for r in cp_results])
    cp_flux = jnp.array([r["flux"] for r in cp_results])
    cp_is_susy = np.array([r.get("is_susy", False) for r in cp_results])
    cp_is_min = np.array([r.get("is_minimum", False) for r in cp_results])

    with db.vacua_writer(model=model_A, method="critical_points") as w:
        w.append_batch(cp_moduli, cp_tau, cp_flux,
                       is_susy=cp_is_susy)
    print(f"Stored {w.count} critical points")
    print(f"  SUSY: {cp_is_susy.sum()}, non-SUSY: {(~cp_is_susy).sum()}")
    print(f"  Minima: {cp_is_min.sum()}, saddles: {(~cp_is_min).sum()}")
else:
    print("No critical-point results found in this run")

Stored 248 critical points
  SUSY: 35, non-SUSY: 213
  Minima: 57, saddles: 191

5. Querying and filtering#

The vacua storage system supports two levels of filtering:

Catalog-level (query_vacua): fast, in-memory filtering by model identity, method, run_id, SUSY flag, and tadpole bound. Returns metadata without loading solution data.
Data-level: load solution arrays with load_vacua(run_id), then filter the pandas DataFrame with arbitrary conditions (moduli range, $|W_0|$ threshold, etc.).

By method#

# Overview of all stored vacua
all_vacua = db.query_vacua(h12=2)
print(f"Total stored vacua for h12=2: {len(all_vacua)}")
print(f"\nMethods: {all_vacua['method'].unique().tolist()}")
print(f"\nCount per method:")
print(all_vacua.groupby("method").size().to_string())
all_vacua.head(5)

Total stored vacua for h12=2: 428

Methods: ['ISD+', 'ISD-', 'F', 'H', 'random', 'flux_bounding', 'PFV', 'PFV_scan', 'critical_points']

Count per method:
method
F                   29
H                   39
ISD+                41
ISD-                22
PFV                  1
PFV_scan             1
critical_points    248
flux_bounding        5
random              42

	vacuum_id	flux	moduli_re	moduli_im	tau_re	tau_im	W_re	W_im	F_terms_re	F_terms_im	...	triang_id	conifold_id	cicy_id	model_hash	model_name	method	created	metadata	moduli	tau
0	0	[21, 19, 0, -1, -2, -2, 4, 21, 7, 0, 2, -2]	[-0.46836663972052406, -0.06922841920969769]	[0.46448869675076043, 0.9297221483816526]	-0.134633	2.837700	None	None	None	None	...	-1	-1	-1	8eebda74984ae6d0ec34af36d8d93ef326c211cd1edbf7...	local_h12_2_ID_1	ISD+	2026-06-10 22:48:40.505942+00:00	None	[(-0.46836663972052406+0.46448869675076043j), ...	-0.134633+2.837700j
1	1	[40, -19, 3, 4, 5, 3, 4, -10, -3, 0, -1, 2]	[0.5296880796408124, -0.32023796208904753]	[0.4911621870478364, 1.8494163401942396]	-0.067452	3.810561	None	None	None	None	...	-1	-1	-1	8eebda74984ae6d0ec34af36d8d93ef326c211cd1edbf7...	local_h12_2_ID_1	ISD+	2026-06-10 22:48:40.505942+00:00	None	[(0.5296880796408124+0.4911621870478364j), (-0...	-0.067452+3.810561j
2	2	[0, 20, 7, 5, -5, 0, -1, 26, 6, 1, 1, 2]	[0.09064033216355658, -0.7494641273900575]	[0.9757830327951234, 1.0270404583300263]	0.206257	2.737421	None	None	None	None	...	-1	-1	-1	8eebda74984ae6d0ec34af36d8d93ef326c211cd1edbf7...	local_h12_2_ID_1	ISD+	2026-06-10 22:48:40.505942+00:00	None	[(0.09064033216355658+0.9757830327951234j), (-...	0.206257+2.737421j
3	3	[-18, 34, 6, -4, 0, 4, 9, -2, -2, 0, 0, 4]	[0.38429692383686975, -0.2862658984674867]	[0.4155502073436528, 3.61461514143811]	0.311495	7.921757	None	None	None	None	...	-1	-1	-1	8eebda74984ae6d0ec34af36d8d93ef326c211cd1edbf7...	local_h12_2_ID_1	ISD+	2026-06-10 22:48:40.505942+00:00	None	[(0.38429692383686975+0.4155502073436528j), (-...	0.311495+7.921757j
4	4	[34, -54, 22, 3, 5, -5, 0, -12, -2, 0, -1, 5]	[0.3809191630812639, 0.611255378328325]	[0.9389060403121477, 4.419512636629724]	-0.487857	5.568850	None	None	None	None	...	-1	-1	-1	8eebda74984ae6d0ec34af36d8d93ef326c211cd1edbf7...	local_h12_2_ID_1	ISD+	2026-06-10 22:48:40.505942+00:00	None	[(0.3809191630812639+0.9389060403121477j), (0....	-0.487857+5.568850j

5 rows × 30 columns

all_vacua_updated = db.complete_missing(db.query_vacua(h12=2), model=model_A)
all_vacua_updated.head(5)

	vacuum_id	flux	moduli_re	moduli_im	tau_re	tau_im	W_re	W_im	F_terms_re	F_terms_im	...	model_hash	model_name	method	created	metadata	moduli	tau	g_s	mass2	m_gravitino
0	0	[21, 19, 0, -1, -2, -2, 4, 21, 7, 0, 2, -2]	[-0.46836663972052406, -0.06922841920969769]	[0.46448869675076043, 0.9297221483816526]	-0.134633	2.837700	35.703727	56.598872	[-4.789058039023075e-12, -3.6912695122737205e-...	[5.8548721426632255e-12, 9.50173273395194e-12,...	...	8eebda74984ae6d0ec34af36d8d93ef326c211cd1edbf7...	local_h12_2_ID_1	ISD+	2026-06-10 22:48:40.505942+00:00	None	[(-0.46836663972052406+0.46448869675076043j), ...	-0.134633+2.837700j	0.352398	[-1221.3085500550399, -1221.3085500550358, 86....	9.432180
1	1	[40, -19, 3, 4, 5, 3, 4, -10, -3, 0, -1, 2]	[0.5296880796408124, -0.32023796208904753]	[0.4911621870478364, 1.8494163401942396]	-0.067452	3.810561	-61.346026	-25.593628	[-7.744915819785092e-13, -6.31050767196939e-12...	[1.5788259588589426e-11, 3.4280134286746033e-1...	...	8eebda74984ae6d0ec34af36d8d93ef326c211cd1edbf7...	local_h12_2_ID_1	ISD+	2026-06-10 22:48:40.505942+00:00	None	[(0.5296880796408124+0.4911621870478364j), (-0...	-0.067452+3.810561j	0.262429	[26.115620780720754, 42.167530982700434, 99.02...	5.791705
2	2	[0, 20, 7, 5, -5, 0, -1, 26, 6, 1, 1, 2]	[0.09064033216355658, -0.7494641273900575]	[0.9757830327951234, 1.0270404583300263]	0.206257	2.737421	111.180569	126.235784	[-1.4210854715202004e-14, -2.5579538487363607e...	[-2.3732127374387346e-12, 8.242295734817162e-1...	...	8eebda74984ae6d0ec34af36d8d93ef326c211cd1edbf7...	local_h12_2_ID_1	ISD+	2026-06-10 22:48:40.505942+00:00	None	[(0.09064033216355658+0.9757830327951234j), (-...	0.206257+2.737421j	0.365307	[1.5590535149938352, 60.97386073046187, 141.60...	12.640084
3	3	[-18, 34, 6, -4, 0, 4, 9, -2, -2, 0, 0, 4]	[0.38429692383686975, -0.2862658984674867]	[0.4155502073436528, 3.61461514143811]	0.311495	7.921757	-56.351980	96.646883	[1.1510792319313623e-11, -2.1671553440683056e-...	[6.266986929404084e-12, 3.446132268436486e-13,...	...	8eebda74984ae6d0ec34af36d8d93ef326c211cd1edbf7...	local_h12_2_ID_1	ISD+	2026-06-10 22:48:40.505942+00:00	None	[(0.38429692383686975+0.4155502073436528j), (-...	0.311495+7.921757j	0.126235	[3.2315407099550093, 8.19723832622711, 74.1677...	4.847483
4	4	[34, -54, 22, 3, 5, -5, 0, -12, -2, 0, -1, 5]	[0.3809191630812639, 0.611255378328325]	[0.9389060403121477, 4.419512636629724]	-0.487857	5.568850	-137.092660	108.707524	[5.6559201766503975e-12, -1.893596390800667e-1...	[-7.105427357601002e-12, 1.0480505352461478e-1...	...	8eebda74984ae6d0ec34af36d8d93ef326c211cd1edbf7...	local_h12_2_ID_1	ISD+	2026-06-10 22:48:40.505942+00:00	None	[(0.3809191630812639+0.9389060403121477j), (0....	-0.487857+5.568850j	0.179570	[7.073287426692269, 25.28851985284972, 136.384...	4.509559

5 rows × 33 columns

By SUSY flag#

# SUSY only
susy = db.query_vacua(h12=2, is_susy=True)
print(f"SUSY vacua: {len(susy)} runs")

# Non-SUSY only
non_susy = db.query_vacua(h12=2, is_susy=False)
print(f"Non-SUSY vacua: {len(non_susy)} runs")

SUSY vacua: 251 runs
Non-SUSY vacua: 225 runs

Custom filtering on loaded data#

query_vacua provides fixed filters. For custom criteria (e.g. moduli in a specific region, $|W_0|$ below a threshold), load the data first and filter with pandas.

# Load all ISD+ vacua
isd_runs = db.query_vacua(method="ISD+")
if len(isd_runs) > 0:
    df = db.load_vacua(run_id=isd_runs.iloc[0]["run_id"])
    print(f"Loaded {len(df)} ISD+ vacua")
    print(f"Columns: {df.columns.tolist()}")

    # Custom filter: Im(tau) > 3 (weak coupling)
    df_weak = df[df["tau"].apply(lambda t: t.imag > 3)]
    print(f"\nWeak coupling (Im(tau) > 3): {len(df_weak)} vacua")

Loaded 42 ISD+ vacua
Columns: ['vacuum_id', 'flux', 'moduli_re', 'moduli_im', 'tau_re', 'tau_im', 'W_re', 'W_im', 'F_terms_re', 'F_terms_im', 'N_flux', 'residual', 'is_susy', 'tags', 'extra_data', 'timestamp', 'run_id', 'h11', 'h12', 'ks_id', 'triang_id', 'conifold_id', 'cicy_id', 'model_hash', 'model_name', 'method', 'created', 'metadata', 'moduli', 'tau']

Weak coupling (Im(tau) > 3): 31 vacua

6. Multiple runs with explicit IDs#

The same sampling method can be run multiple times with different run_id labels.

# Run alpha
z0a, tau0a, fl0a = sampler.initial_guesses_ISD(N=30, Nmax=100, mode="ISD+")
ma, ta, fa = solve_from_guesses(model_A, z0a, tau0a, fl0a)
with db.vacua_writer(model=model_A, method="ISD+", run_id="run_alpha") as w:
    w.append_batch(ma, ta, fa)
print(f"Run alpha: {w.count} vacua")

# Run beta (different random seed gives different starting points)
z0b, tau0b, fl0b = sampler.initial_guesses_ISD(N=30, Nmax=100, mode="ISD+")
mb, tb, fb = solve_from_guesses(model_A, z0b, tau0b, fl0b)
with db.vacua_writer(model=model_A, method="ISD+", run_id="run_beta") as w:
    w.append_batch(mb, tb, fb)
print(f"Run beta:  {w.count} vacua")

# Query by run_id
df_alpha = db.load_vacua(run_id="run_alpha")
df_beta = db.load_vacua(run_id="run_beta")
print(f"\nLoaded: alpha={len(df_alpha)}, beta={len(df_beta)}")

Run alpha: 27 vacua
Run beta:  24 vacua

Loaded: alpha=27, beta=24

7. Designating vacua#

Designation promotes session vacua (Tier 1) to permanent, validated records (Tier 2) with full provenance metadata. The designate_vacua method:

Validates each solution by checking $|D_I W| < $ F_term_tol
Deduplicates against existing designated solutions
Records label, author, timestamp, and optional notes
Assigns unique designated_id integers

Designated vacua survive clear_cache() unless explicitly included.

# Load the ISD+ vacua from the first run
runs = db.query_vacua(method="ISD+")
if len(runs) > 0:
    first_run = runs.iloc[0]["run_id"]
    vacua_to_designate = db.load_vacua(run_id=first_run)

    if len(vacua_to_designate) > 0:
        # Designate with validation
        designated_ids = db.designate_vacua(
            vacua_to_designate.head(5),  # designate first 5
            label="NB25 tutorial demo",
            committed_by="tutorial",
            model=model_A,
            notes="Demonstration of vacua designation",
        )
        print(f"Designated {len(designated_ids)} vacua: IDs = {designated_ids}")

        # Query designated
        designated = db.query_designated(h12=2)
        print(f"\nDesignated catalog ({len(designated)} entries):")
        print(designated[["designated_id", "label", "committed_by"]].to_string())

Designated 5 vacua: IDs = [0, 1, 2, 3, 4]

Designated catalog (5 entries):
   designated_id               label committed_by
0              0  NB25 tutorial demo     tutorial
1              1  NB25 tutorial demo     tutorial
2              2  NB25 tutorial demo     tutorial
3              3  NB25 tutorial demo     tutorial
4              4  NB25 tutorial demo     tutorial

# Load full designated solution data
designated_data = db.load_designated(h12=2)
if len(designated_data) > 0:
    print(f"Loaded {len(designated_data)} designated solutions")
    print(f"Columns: {designated_data.columns.tolist()}")

Loaded 5 designated solutions
Columns: ['designated_id', 'flux', 'moduli_re', 'moduli_im', 'tau_re', 'tau_im', 'W_re', 'W_im', 'F_terms_re', 'F_terms_im', 'N_flux', 'g_s', 'mass2', 'm_gravitino', 'residual', 'is_susy', 'tags', 'extra_data', 'label', 'committed_by', 'commit_date']

# Load the ISD+ vacua from the first run
runs = db.query_vacua(method="ISD+")
if len(runs) > 0:
    first_run = runs.iloc[0]["run_id"]
    vacua_to_designate = db.load_vacua(run_id=first_run)

    if len(vacua_to_designate) > 0:
        # Designate with validation
        designated_ids = db.designate_vacua(
            vacua_to_designate[5:10],  # designate first 5
            label="NB25 tutorial demo",
            committed_by="tutorial",
            model=model_A,
            notes="Demonstration of vacua designation",
        )
        print(f"Designated {len(designated_ids)} vacua: IDs = {designated_ids}")

        # Query designated
        designated = db.query_designated(h12=2)
        print(f"\nDesignated catalog ({len(designated)} entries):")
        print(designated[["designated_id", "label", "committed_by"]].to_string())

Designated 5 vacua: IDs = [5, 6, 7, 8, 9]

Designated catalog (10 entries):
   designated_id               label committed_by
            0  NB25 tutorial demo     tutorial
            1  NB25 tutorial demo     tutorial
            2  NB25 tutorial demo     tutorial
            3  NB25 tutorial demo     tutorial
            4  NB25 tutorial demo     tutorial
            5  NB25 tutorial demo     tutorial
            6  NB25 tutorial demo     tutorial
            7  NB25 tutorial demo     tutorial
            8  NB25 tutorial demo     tutorial
            9  NB25 tutorial demo     tutorial

# Load full designated solution data
designated_data = db.load_designated(h12=2)
if len(designated_data) > 0:
    print(f"Loaded {len(designated_data)} designated solutions")
    print(f"Columns: {designated_data.columns.tolist()}")

Loaded 10 designated solutions
Columns: ['designated_id', 'flux', 'moduli_re', 'moduli_im', 'tau_re', 'tau_im', 'W_re', 'W_im', 'F_terms_re', 'F_terms_im', 'N_flux', 'g_s', 'mass2', 'm_gravitino', 'residual', 'is_susy', 'tags', 'extra_data', 'label', 'committed_by', 'commit_date']

Autocomplete, masses and validation#

Designated records carry their derived quantities automatically. complete_missing(df, model=...) back-fills the superpotential W, the F-terms, the tadpole N_flux, the string coupling g_s = 1/\mathrm{Im}\,\tau, and the mass spectrum (mass2, m_gravitino) on any vacua table. validate_vacua(df, model=...) runs the F-term + schema checks (and flux deduplication) standalone, i.e. the same gate designate_vacua applies.

# --- Autocomplete derived quantities (including the mass spectrum) --------
# designate_vacua() already computes W, F-terms, N_flux, g_s AND the mass
# spectrum for every designated record.  complete_missing() back-fills any of
# these that are absent on an arbitrary vacua DataFrame (idempotent -- existing
# values are preserved), and works on session vacua or designated vacua alike.
designated_data = db.complete_missing(db.load_designated(h12=2), model=model_A)
cols = [c for c in ("designated_id", "g_s", "m_gravitino", "mass2")
        if c in designated_data.columns]
print(designated_data[cols].head().to_string())
print(
    "\nUnits: `mass2` (mass^2 spectrum) and `m_gravitino` are in the FluxEFT\n"
    "no-scale normalisation, NOT in M_Pl. The overall CY (Einstein-frame)\n"
    "volume is not stabilised at the FluxEFT level, so both carry an unfixed\n"
    "volume factor; only the ratio |m|/m_3/2 (in which the volume cancels)\n"
    "is a volume-independent physical observable."
)

# --- Standalone validation + deduplication --------------------------------
# designate_vacua() validates (|D_I W| < F_term_tol) AND deduplicates by flux
# internally.  The same F-term + schema check runs directly on any DataFrame;
# we pass check_duplicates=False here so already-designated rows are not flagged
# as duplicates (deduplication is what designate_vacua adds on top):
_runs = db.query_vacua(method="ISD+")
if len(_runs) > 0:
    _sess = db.load_vacua(run_id=_runs.iloc[0]["run_id"]).head(5)
    _report = db.validate_vacua(_sess, model=model_A, check_duplicates=False)
    _npass = sum(1 for r in _report if r["passed"])
    print(f"\nvalidate_vacua: {_npass}/{len(_report)} rows passed F-term + schema checks")

   designated_id       g_s  m_gravitino                                                                                                                 mass2
0              0  0.133384    10.586760   [35.518997745046384, 70.26597451410002, 98.916293621498, 163.61069803149695, 231.45783246161378, 968.4038024237344]
1              1  0.445978    10.265991    [9.915097585666862, 36.87922922982536, 91.71851350775195, 120.4624766183401, 203.3283696220451, 306.2544441494099]
2              2  0.301650    13.032153  [-198.88165145872992, -198.8816514587296, 37.29677184626102, 164.9263717926893, 376.2671568287369, 787.612106621948]
3              3  0.322910     5.688928  [17.31926953098146, 32.42992645546574, 52.07819623652603, 291.3774128952567, 177513.82858027107, 177513.82858027125]
4              4  0.417900          NaN                                                                                                                  None

Units: `mass2` (mass^2 spectrum) and `m_gravitino` are in the FluxEFT
no-scale normalisation, NOT in M_Pl. The overall CY (Einstein-frame)
volume is not stabilised at the FluxEFT level, so both carry an unfixed
volume factor; only the ratio |m|/m_3/2 (in which the volume cancels)
is a volume-independent physical observable.

validate_vacua: 5/5 rows passed F-term + schema checks

8. Models from the HuggingFace database#

We load two models from the TDF database and store vacua for each.

from stringforge import LCSDatabase
def TDFDatabase(**kwargs): return LCSDatabase(dataset="tdf", **kwargs)

try:
    db_tdf = TDFDatabase()

    # Query for two h12=2 (mirror convention) models with GV data
    candidates = db_tdf.query(h12=2, has_gv=True)
    if len(candidates) >= 2:
        for idx in range(2):
            row = candidates.iloc[idx]
            ks_id = int(row["ks_id"])
            triang_id = int(row["triang_id"])
            h11 = int(row["h11"])  # mirror h11 (= catalog h12)
            h12 = int(row["h12"])  # mirror h12 (= catalog h11)
            model_tdf = db_tdf.load_model(
                h11=h11, h12=h12, ks_id=ks_id, triang_id=triang_id,
                include_gv=True, maximum_degree=2
            )
            sampler_tdf = jvc.data_sampler(model_tdf)

            z0, tau0, fl0 = sampler_tdf.initial_guesses_ISD(N=30, Nmax=100, mode="ISD+", moduli_sampling_mode="cone", ISD_oversample_factor=2, filter_moduli=True)
            m, t, f = solve_from_guesses(model_tdf, z0, tau0, fl0)

            if len(m) > 0:
                with db.vacua_writer(model=model_tdf, method="ISD+") as w:
                    w.append_batch(m, t, f)
                print(f"ks_id={ks_id}, triang_id={triang_id}: Stored {w.count} vacua")
            else:
                print(f"ks_id={ks_id}, triang_id={triang_id}: No converged vacua")
    else:
        print("Not enough h12=2 (mirror) models with GV data in TDF database")
except Exception as e:
    print(f"TDF database not available: {e}")
    print("(This section requires huggingface-hub, pandas, pyarrow)")

ks_id=23, triang_id=0: Stored 24 vacua
ks_id=24, triang_id=0: Stored 24 vacua

db_tdf.clear_cache(
    include_vacua=True,                   # wipe session vacua too
    include_designated=True,              # wipe legacy designated_vacua/ subdir
    remove_dir = True                     # remove cache dir -> can be kept if new models are loaded
)

9. Two local models (model_ID=1 vs model_ID=2)#

Local models loaded via model_ID are automatically identified in the storage by (h12, model_ID). This allows storing and querying vacua for different geometries within the same database.

Model A: CP$[1,1,1,6,9]$ (model_ID=1) — the degree-18 hypersurface
Model B: a different $h^{2,1}=2$ geometry (model_ID=2)

# Model B: different geometry, same h12
model_B = jvc.FluxVacuaFinder(h12=2, model_ID=2, model_type="KS", maximum_degree=2)
sampler_B = jvc.data_sampler(model_B)

print(f"Model A: h12={model_A.h12}, model_ID={model_A.lcs_tree.model_ID}")
print(f"Model B: h12={model_B.h12}, model_ID={model_B.lcs_tree.model_ID}")

# Generate vacua for Model B
z0b, tau0b, fl0b = sampler_B.initial_guesses_ISD(N=50, Nmax=100, mode="ISD+")
mb, tb, fb = solve_from_guesses(model_B, z0b, tau0b, fl0b)
print(f"\nModel B: {len(mb)}/{len(z0b)} converged")

if len(mb) > 0:
    with db.vacua_writer(model=model_B, method="ISD+") as w:
        w.append_batch(mb, tb, fb)
    print(f"Stored {w.count} vacua for Model B")

Model A: h12=2, model_ID=1
Model B: h12=2, model_ID=1

Model B: 43/50 converged
Stored 43 vacua for Model B

# Query across both models
all_h12_2 = db.query_vacua(h12=2)
print("All h12=2 runs:")
group_cols = [c for c in ("model_name", "method") if c in all_h12_2.columns]
if group_cols:
    print(all_h12_2.groupby(group_cols).size().to_frame("count").to_string())
else:
    print(all_h12_2["method"].value_counts().to_string())

All h12=2 runs:
                                  count
model_name       method
local_h12_2_ID_1 F                   22
                 H                   39
                 ISD+               136
                 ISD-                18
                 PFV                  1
                 PFV_scan             1
                 critical_points    265
                 flux_bounding       46
                 random              42

11. The persistent vault (`vacua_vault/`)#

Designation promotes session vacua to the permanent vault. The vault is a project-local directory; stringforge.cy_io._resolve_vault_dir() decides where it lives by walking through three stages in order — it uses whichever one succeeds first.

Stage 1 — Did you tell us where the vault is?#

Look for the STRINGFORGE_VAULT environment variable. If it’s set, use that path. Done.

You can set it three equivalent ways:

export STRINGFORGE_VAULT=~/my_vault          # shell

os.environ["STRINGFORGE_VAULT"] = "~/my_vault"   # in a notebook

import stringforge as sj
sj.set_vault_dir("~/my_vault")                  # cleanest

This is the recommended path for any real workflow. It’s explicit, survives across sessions, and works the same in CI / cluster jobs / interactive notebooks.

Stage 2 — Are you working inside a stringforge checkout?#

If Stage 1 didn’t apply, walk up from the current working directory looking for a folder that

contains setup.py whose name is "stringforge", and
contains a stringforge/ subdirectory.

If found, use <that-folder>/vacua_vault/. This is the developer convenience — when you’re hacking on stringforge itself, the vault is right next to the source so curated solutions live with the code that produced them.

Stage 3 — Hard failure#

If neither of the above succeeds, the function raises LookupError with an instruction message telling the user how to configure the vault. This is deliberate: silently creating a vacua_vault/ next to wherever Python happens to be running used to scatter empty vault folders across users’ filesystems. Forcing an explicit choice (Stage 1 or Stage 2) prevents that fragmentation.

If you genuinely want a cwd-local vault for a one-off demo, set STRINGFORGE_VAULT=. explicitly — that satisfies Stage 1.

The vault lives outside cache_dir so clear_cache() never touches it.

Per-model subdirectories:

Model source	Vault path
Local KS (via `model_ID`)	`<vault>/KS/h12_{N}_model_{M}/`
TDF (HF)	`<vault>/tdf/ks_{X}_tri_{Y}/`
CICY (HF)	`<vault>/cicy/cicy_{Z}/`
Custom (no DB entry)	`<vault>/custom/{model_hash}/`

# Point the vault at a scratch directory for this demo so we don't
# pollute the user's real vault.
import os
os.environ["STRINGFORGE_VAULT"] = os.path.join(tmpdir, "vault")

from stringforge.cy_io import _resolve_vault_dir
print(f"Resolved vault:           {_resolve_vault_dir()}")
print(f"Per-model vault for A:    {db._resolve_vacua_dir(model=model_A)}")
print(f"Per-model vault for B:    {db._resolve_vacua_dir(model=model_B)}")

# Designate some vacua for Model A and load them back
runs = db.query_vacua(method="F")
if len(runs):
    df = db.load_vacua(run_id=runs.iloc[0]["run_id"])
    if len(df):
        db.designate_vacua(
            df.head(3), label="vault_demo", committed_by="tutorial",
            model=model_A, validate=False,
        )
        loaded = db.load_local_vacua(model=model_A, label="vault_demo")
        print(f"\nDesignated + loaded back: {len(loaded)} rows")
        print("Vault contents:")
        for root, _, files in os.walk(_resolve_vault_dir()):
            for f in files:
                print(f"  {os.path.relpath(os.path.join(root, f), _resolve_vault_dir())}")

Resolved vault:           /private/var/folders/p7/f3t072gd3rbfgb00y3hj7dwc0000gn/T/jaxvacua_demo_oqo6swwn/vault
Per-model vault for A:    /private/var/folders/p7/f3t072gd3rbfgb00y3hj7dwc0000gn/T/jaxvacua_demo_oqo6swwn/vault/KS/h12_2_model_1
Per-model vault for B:    /private/var/folders/p7/f3t072gd3rbfgb00y3hj7dwc0000gn/T/jaxvacua_demo_oqo6swwn/vault/KS/h12_2_model_1

Designated + loaded back: 3 rows
Vault contents:
  designated_vacua_catalog.parquet.lock
  designated_vacua_catalog.parquet
  KS/h12_2_model_1/shard_0.parquet

12. Retraction and cleanup#

Designated vacua should not be deleted lightly. Two-stage soft-delete:

Step	Method	Reversible?	Effect
1. Retire	`db.retract_designated(id, reason, retracted_by=...)`	✅	Sets `retracted=True`, stamps `retracted_at`; appends an entry to `<vault>/retractions.parquet`. Hidden from `query_designated` by default.
2. Purge	`db.purge_retracted(older_than="30d", dry_run=True, confirm=False, archive=False)`	❌	Surgically rewrites shards to drop retracted rows. Requires both `dry_run=False` AND `confirm=True`; default is dry-run.

clear_cache() takes a keep_vault=True kwarg (default) that guarantees the vault is never touched — the flag exists for API symmetry; the vault lives outside cache_dir so it is safe by construction.

# Retract one of the designated rows we just created
dcat = db.query_designated(h12=2, label="vault_demo")
if len(dcat):
    victim_id = int(dcat.iloc[0]["designated_id"])
    db.retract_designated(
        victim_id, reason="Demo: showing the retract/purge flow.",
        retracted_by="tutorial",
    )
    print(f"Retracted id={victim_id}")

    # Default query hides retracted rows
    visible = db.load_local_vacua(model=model_A, label="vault_demo")
    with_retracted = db.load_local_vacua(
        model=model_A, label="vault_demo", include_retracted=True,
    )
    print(f"Visible rows:            {len(visible)}")
    print(f"Rows incl. retracted:    {len(with_retracted)}")

    # Audit trail at <vault>/retractions.parquet
    import pandas as pd
    audit = pd.read_parquet(_resolve_vault_dir() / "retractions.parquet")
    print(f"\nAudit trail ({len(audit)} entries):")
    print(audit.to_string())

    # Purge (dry run — no files touched)
    print("\n-- dry_run --")
    db.purge_retracted(older_than=None, dry_run=True)

    # Purge for real with confirm=True
    print("\n-- real purge --")
    deleted = db.purge_retracted(
        older_than=None, dry_run=False, confirm=True,
    )
    print(f"Actually deleted: {deleted}")

Retracted id=10
Visible rows:            2
Rows incl. retracted:    2

Audit trail (1 entries):
   designated_id                                 reason                     retracted_at retracted_by
0             10  Demo: showing the retract/purge flow. 2026-06-10 22:46:35.599073+00:00     tutorial

-- dry_run --
[purge_retracted] 1 entries selected for purge:
  id=10 label='vault_demo' retracted_at=2026-06-10 22:46:35.599073+00:00
[purge_retracted] dry_run=True — no files touched. Pass dry_run=False, confirm=True to actually delete.

-- real purge --
[purge_retracted] 1 entries selected for purge:
  id=10 label='vault_demo' retracted_at=2026-06-10 22:46:35.599073+00:00
[purge_retracted] Purged 1 entry(ies) across 1 shard(s). Audit trail remains in /private/var/folders/p7/f3t072gd3rbfgb00y3hj7dwc0000gn/T/jaxvacua_demo_oqo6swwn/vault/retractions.parquet
Actually deleted: [10]

13. Sharing vacua on HuggingFace#

Curated vacua can be uploaded to the community repo aschachner/vacua_vault (overridable via STRINGFORGE_VAULT_REPO or stringforge.set_vault_repo(repo_id)).

Three methods:

Method	Purpose
`db.push_vacua_to_hub(df, label, committed_by, model, ..., create_pr=True)`	Upload a parquet of rows under `community/{hf_username}_{label}.parquet`. Opens a PR by default.
`db.fetch_vacua_from_hub(model=..., label=..., include_community=False)`	Download curated (and optionally community) files for a specific model.
`db.list_hub_vacua(h12=..., label=..., ...)`	Browse the remote `catalog.parquet` using the same filter API as `query_designated`.

Filename convention (Option A): free-form snake-case labels matching ^[A-Za-z0-9][A-Za-z0-9_-]*$. Classification (susy, method, nmax, qualifiers) lives in parquet key-value metadata, not the filename. _v{n} is auto-appended on collision when if_exists="new_version".

Validation (two layers):

Client-side (before push): slug check, schema version vs remote, F-term / tadpole checks, deduplicate against local vault.
Server-side (PR CI): re-runs client checks, verifies F-terms to tight tolerance using a model reconstructed from identity fields. Posts a sticky comment with the catalog preview diff.

Partial-failure modes:

partial_failure="strict" (default) — reject the whole upload if any row fails.
partial_failure="split" — valid rows go to the main file; failing rows go to _rejected/{filename}.rejected.parquet with a per-row error column.

Note. The cells below show the API but don’t actually upload — they require an HF account + HF_TOKEN. Run them with real credentials to actually push.

# Show the API shape without actually uploading (uncomment to push)
example_df = db.load_local_vacua(model=model_A).head(3) if len(
    db.load_local_vacua(model=model_A)
) else None

if example_df is not None:
    print(f"Would upload {len(example_df)} rows via:")
    print("""
    db.push_vacua_to_hub(
        example_df,
        label="tutorial_demo",
        committed_by="you (ORCID:0000-...)",
        model=model_A,
        tags=["SUSY", "Nmax200"],
        create_pr=True,                      # open a PR rather than push direct
        partial_failure="strict",            # or "split"
        if_exists="error",                   # or "append" | "new_version"
        classification={
            "susy": "SUSY",
            "method": "ISD+",
            "nmax": 200,
            "qualifiers": {"moduli_max": 100},
        },
    )
    """)

# Browsing: list all curated SUSY datasets at h12=2 (requires network)
# catalog = db.list_hub_vacua(h12=2, label=None, include_retracted=False)
# print(catalog[["basename", "susy", "method", "nmax", "n_rows", "committed_by"]])

# Downloading: fetch curated rows for ks_id=29, triang_id=0 (requires network)
# df = db.fetch_vacua_from_hub(ks_id=29, triang_id=0, include_community=False)
# print(df.shape)

Would upload 3 rows via:

    db.push_vacua_to_hub(
        example_df,
        label="tutorial_demo",
        committed_by="you (ORCID:0000-...)",
        model=model_A,
        tags=["SUSY", "Nmax200"],
        create_pr=True,                      # open a PR rather than push direct
        partial_failure="strict",            # or "split"
        if_exists="error",                   # or "append" | "new_version"
        classification={
            "susy": "SUSY",
            "method": "ISD+",
            "nmax": 200,
            "qualifiers": {"moduli_max": 100},
        },
    )


14. Server-side tooling — the `stringforge.vacuavault` CLI#

The stringforge.vacuavault subpackage provides three CLI subcommands used by the HuggingFace repo’s CI:

Command	Purpose	Typical caller
`stringforge.vacuavault validate`	Parse the git diff, re-validate changed parquets, write `validation_report.json` + `catalog_preview.md`.	PR CI
`stringforge.vacuavault rebuild_catalog`	Scan all parquet files in the repo and regenerate `catalog.parquet` from their pyarrow key-value metadata.	Post-merge CI on `main`
`stringforge.vacuavault curate <community_file>`	Move a `community/{hf_username}_{label}.parquet` up to the model-level directory, strip the prefix, record `original_contributor` in the file’s metadata.	Maintainer

Both CLI subcommands are also importable: from stringforge.vacuavault import validate_pr_diff, rebuild_catalog, curate_submission.

Workflow YAML templates that install the CLI and run these commands should live in the HuggingFace dataset repository’s .github/workflows/ directory. Private reference copies are deliberately not part of the public documentation.

import subprocess, sys, os, shutil, json
import pyarrow as pa
import pyarrow.parquet as pq

# Build a tiny synthetic vault repo in a scratch dir
repo = os.path.join(tmpdir, "ci_demo_repo")
os.makedirs(os.path.join(repo, "tdf", "h12_2", "ks_29_tri_0", "community"), exist_ok=True)

def _mk(path, metadata):
    """Build a tiny synthetic vacua parquet with the standard 5
    required columns.  Works in isolation — doesn't depend on
    any prior db state being non-empty or schema-aligned."""
    rng = np.random.default_rng(int(metadata.get("nmax", 0)))
    n_fluxes = 2 * (model_A.h12 + 1)
    df = pd.DataFrame({
        "flux":      [[int(x) for x in rng.integers(-3, 4, 2 * n_fluxes)] for _ in range(3)],
        "moduli_re": [[1.0 + i*0.1, 2.0]                                  for i in range(3)],
        "moduli_im": [[3.0,         4.0 + i*0.05]                         for i in range(3)],
        "tau_re":    [0.0] * 3,
        "tau_im":    [1.0 + i*0.01 for i in range(3)],
    })
    tbl = pa.Table.from_pandas(df, preserve_index=False)
    tbl = tbl.replace_schema_metadata(
        {**(tbl.schema.metadata or {}),
         **{k.encode(): str(v).encode() for k, v in metadata.items()}}
    )
    pq.write_table(tbl, path)

# One curated, one community
_mk(os.path.join(repo, "tdf/h12_2/ks_29_tri_0/SUSY_Nmax34.parquet"),
    {"schema_version": 1, "susy": "SUSY", "method": "enumerate", "nmax": 34})
_mk(os.path.join(repo, "tdf/h12_2/ks_29_tri_0/community/alice-hf_dS_candidates.parquet"),
    {"schema_version": 1, "susy": "nonSUSY", "method": "ISD-", "nmax": 200,
     "committed_by": "alice"})

# --- rebuild_catalog: regenerate catalog.parquet ---
r = subprocess.run(
    [sys.executable, "-m", "stringforge.vacuavault", "rebuild_catalog",
     "--repo-path", repo],
    capture_output=True, text=True,
)
print("rebuild_catalog stdout:")
print(r.stdout)

import pandas as pd
cat = pd.read_parquet(os.path.join(repo, "catalog.parquet"))
print(f"\nCatalog has {len(cat)} entries:")
print(cat[["basename", "status", "susy", "method", "nmax"]].to_string())

# --- curate: promote the community file up to the model dir ---
from stringforge.vacuavault import curate_submission
target = curate_submission(
    os.path.join(repo, "tdf/h12_2/ks_29_tri_0/community/alice-hf_dS_candidates.parquet"),
    repo_root=repo, verbose=True,
)
print(f"\nCurated → {os.path.relpath(target, repo)}")
print(f"original_contributor preserved:")
md = pq.read_table(target).schema.metadata or {}
for k in [b"original_contributor", b"status"]:
    if k in md:
        print(f"  {k.decode()} = {md[k].decode()}")

rebuild_catalog stdout:
[catalog] tdf/h12_2/ks_29_tri_0/SUSY_Nmax34.parquet  rows=3 susy=SUSY status=curated
[catalog] tdf/h12_2/ks_29_tri_0/community/alice-hf_dS_candidates.parquet  rows=3 susy=nonSUSY status=pending
[catalog] wrote 2 rows to /private/var/folders/p7/f3t072gd3rbfgb00y3hj7dwc0000gn/T/jaxvacua_demo_oqo6swwn/ci_demo_repo/catalog.parquet


Catalog has 2 entries:
                         basename   status     susy     method  nmax
0             SUSY_Nmax34.parquet  curated     SUSY  enumerate    34
1  alice-hf_dS_candidates.parquet  pending  nonSUSY       ISD-   200
[curate] tdf/h12_2/ks_29_tri_0/community/alice-hf_dS_candidates.parquet → tdf/h12_2/ks_29_tri_0/dS_candidates.parquet
[curate] original_contributor = 'alice-hf'

Curated → ../../../../../../../private/var/folders/p7/f3t072gd3rbfgb00y3hj7dwc0000gn/T/jaxvacua_demo_oqo6swwn/ci_demo_repo/tdf/h12_2/ks_29_tri_0/dS_candidates.parquet
original_contributor preserved:
  original_contributor = alice-hf
  status = curated

15. Cleanup#

Delete the scratch directories created for this notebook and clear the STRINGFORGE_VAULT env override so subsequent work resumes using the default vault location.

import shutil, os
shutil.rmtree(tmpdir, ignore_errors=True)
os.environ.pop("STRINGFORGE_VAULT", None)
print(f"Cleaned up {tmpdir}")

Cleaned up /var/folders/p7/f3t072gd3rbfgb00y3hj7dwc0000gn/T/jaxvacua_demo_oqo6swwn

import shutil, os
shutil.rmtree(tmpdir, ignore_errors=True)
os.environ.pop("STRINGFORGE_VAULT", None)
print(f"Cleaned up {tmpdir}")

Cleaned up /var/folders/p7/f3t072gd3rbfgb00y3hj7dwc0000gn/T/jaxvacua_demo_oqo6swwn

Vacua Storage

Contents

Vacua Storage#

1. Setup#

2. Model A: CP\([1,1,1,6,9]\) at \(h^{2,1}=2\)#

Helper: solve and collect#

3. Generating vacua with different sampling methods#

ISD sampling (4 modes)#

Random uniform sampling#

Flux bounding (systematic enumeration)#

Perturbatively flat vacua (PFVs)#

Summary of SUSY vacua#

4. Non-SUSY critical points#

Non-SUSY and critical-point results#

5. Querying and filtering#

By method#

By SUSY flag#

Custom filtering on loaded data#

6. Multiple runs with explicit IDs#

7. Designating vacua#

Autocomplete, masses and validation#

8. Models from the HuggingFace database#

9. Two local models (model_ID=1 vs model_ID=2)#

11. The persistent vault (`vacua_vault/`)#

Stage 1 — Did you tell us where the vault is?#

Stage 2 — Are you working inside a stringforge checkout?#

Stage 3 — Hard failure#

12. Retraction and cleanup#

14. Server-side tooling — the `stringforge.vacuavault` CLI#

15. Cleanup#

Vacua Storage

Contents

Vacua Storage#

1. Setup#

2. Model A: CP\([1,1,1,6,9]\) at \(h^{2,1}=2\)#

Helper: solve and collect#

3. Generating vacua with different sampling methods#

ISD sampling (4 modes)#

Random uniform sampling#

Flux bounding (systematic enumeration)#

Perturbatively flat vacua (PFVs)#

Summary of SUSY vacua#

4. Non-SUSY critical points#

Non-SUSY and critical-point results#

5. Querying and filtering#

By method#

By SUSY flag#

Custom filtering on loaded data#

6. Multiple runs with explicit IDs#

7. Designating vacua#

Autocomplete, masses and validation#

8. Models from the HuggingFace database#

9. Two local models (model_ID=1 vs model_ID=2)#

11. The persistent vault (vacua_vault/)#

Stage 1 — Did you tell us where the vault is?#

Stage 2 — Are you working inside a stringforge checkout?#

Stage 3 — Hard failure#

12. Retraction and cleanup#

13. Sharing vacua on HuggingFace#

14. Server-side tooling — the stringforge.vacuavault CLI#

15. Cleanup#

11. The persistent vault (`vacua_vault/`)#

14. Server-side tooling — the `stringforge.vacuavault` CLI#
